165m² 12kW Monobloc Heatpump and Multi-Zone Water Underfloor Heating Combined Pack
165m² 12kW Monobloc Heatpump and Multi-Zone Water Underfloor Heating Combined Pack
Description:
The ThermRite & Midea 165.0m² 12kW Monobloc Heatpump and Multi-Zone Water Underfloor Heating Combined Pack is a high-capacity, energy-efficient heating and cooling solution designed for large, well-insulated new build homes or renovation projects compliant with UK building regulations. This complete system includes a powerful Midea R32 12kW monobloc heat pump, a professional multi-zone water underfloor heating system, and all necessary components for a seamless installation. It offers whisper-quiet operation, WiFi-enabled controls, and consistent year-round comfort.
- Coverage: 165.0m² (pipe spacing: 150mm centre-to-centre)
- Application: Ideal for highly insulated new builds or renovations built to UK modern insulation standards
- Pipe Layout: Custom CAD pipework plan supplied for optimal installation and efficient heat distribution
- Complete Kit: Includes all primary components and installation hardware needed for professional fitting
Technical Information
-
Monobloc Heat Pump:

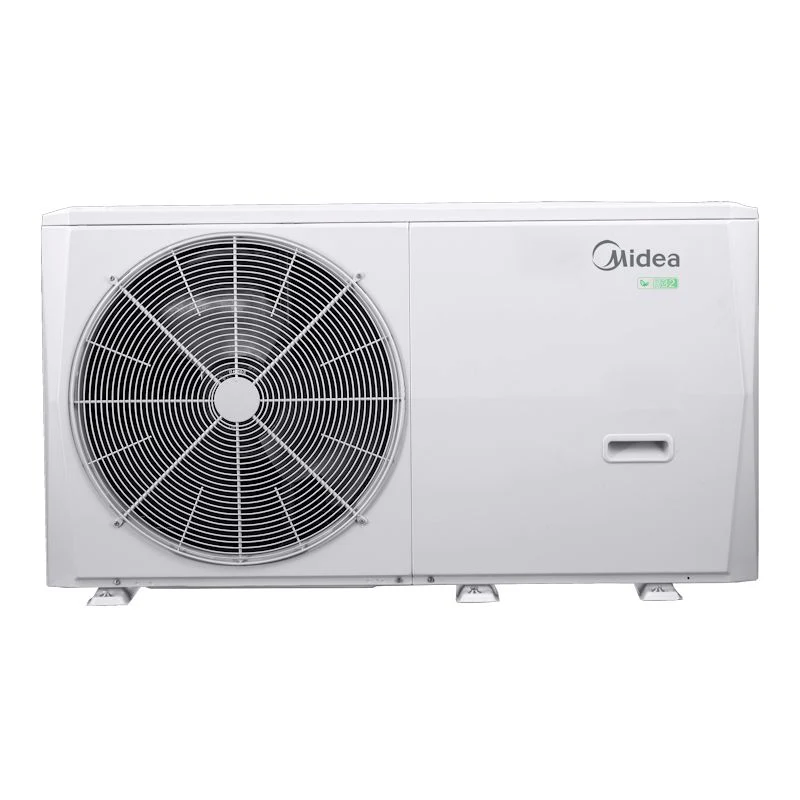

- 12.0kW Midea R32 Monobloc Heatpump
- A+++ ErP seasonal efficiency rating at 35°C flow temperature
- Maximum sound power: ≤60dB(A), reduced to 35dB(A) in silent chamber at 3 metres
- Maximum outlet water temperature: 65°C
- Continuous hot water supply temperature up to 60°C, operational down to -20°C outdoor temperature
- Efficient heating operation down to -7°C ambient air temperature
- DC inverter compressor, fan, and pump for precise and efficient control
- WiFi and app control standard; USB programme upgrade capable
-
Hydraulic Components:
- 50 litre insulated buffer tank, mountable on wall or floor
- Grundfos 25/7 circulation pump supplied with cable, valves, and washers
- Flow meter/setter with integrated flush and fill points plus all necessary fittings
- Installation components including hoses, buffer feet, glycol, and valves
-
Underfloor Heating System:
- A-rated Grundfos low-energy 3-speed circulation pump
- Ten-port Dualmix manifold consisting of:
- Manifold isolating valves
- Temperature gauges
- Lockshields with flow meters for each port
- Drain/fill valves with blank caps
- Automatic air vents
- Metal fixing brackets
- 16mm European standard 5-layer Pert-Al-Pert pipe, 1,100 metres (upgradeable to Pex-Al-Pex)
- Pipe fixing clips, 1,100 units
- Perimeter edge insulation roll, 100 metres
- Pipe cutters and pipe reaming tool included
- Pipe connector cores, 20 pieces
-
Support and Documentation:
- Custom CAD pipework layout plan provided for design and installation
- Comprehensive installation manual supplied
This combined pack is optimised for properties built to modern UK insulation standards. For bespoke sizing or different property requirements, please contact us for expert assistance.
