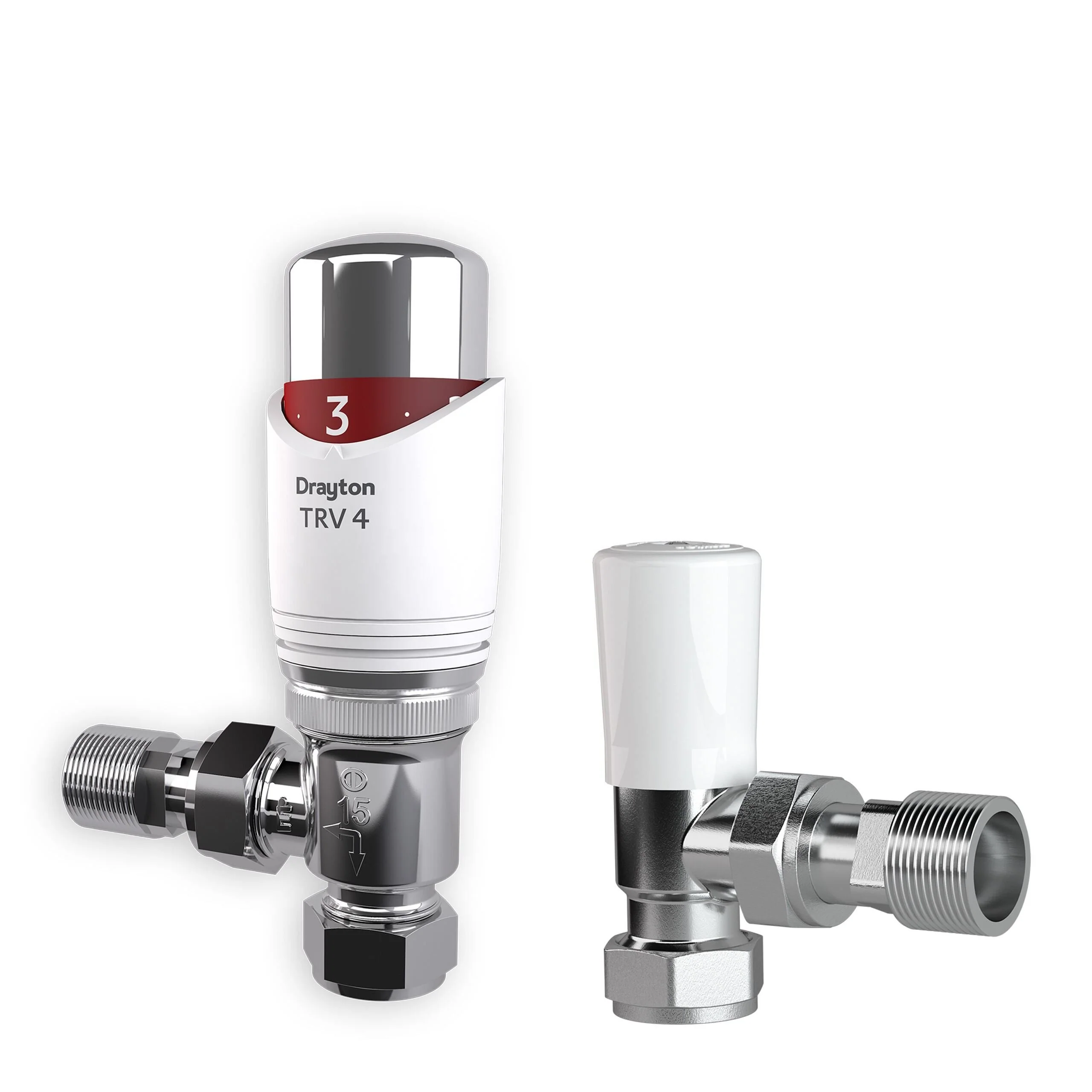

Product image 1

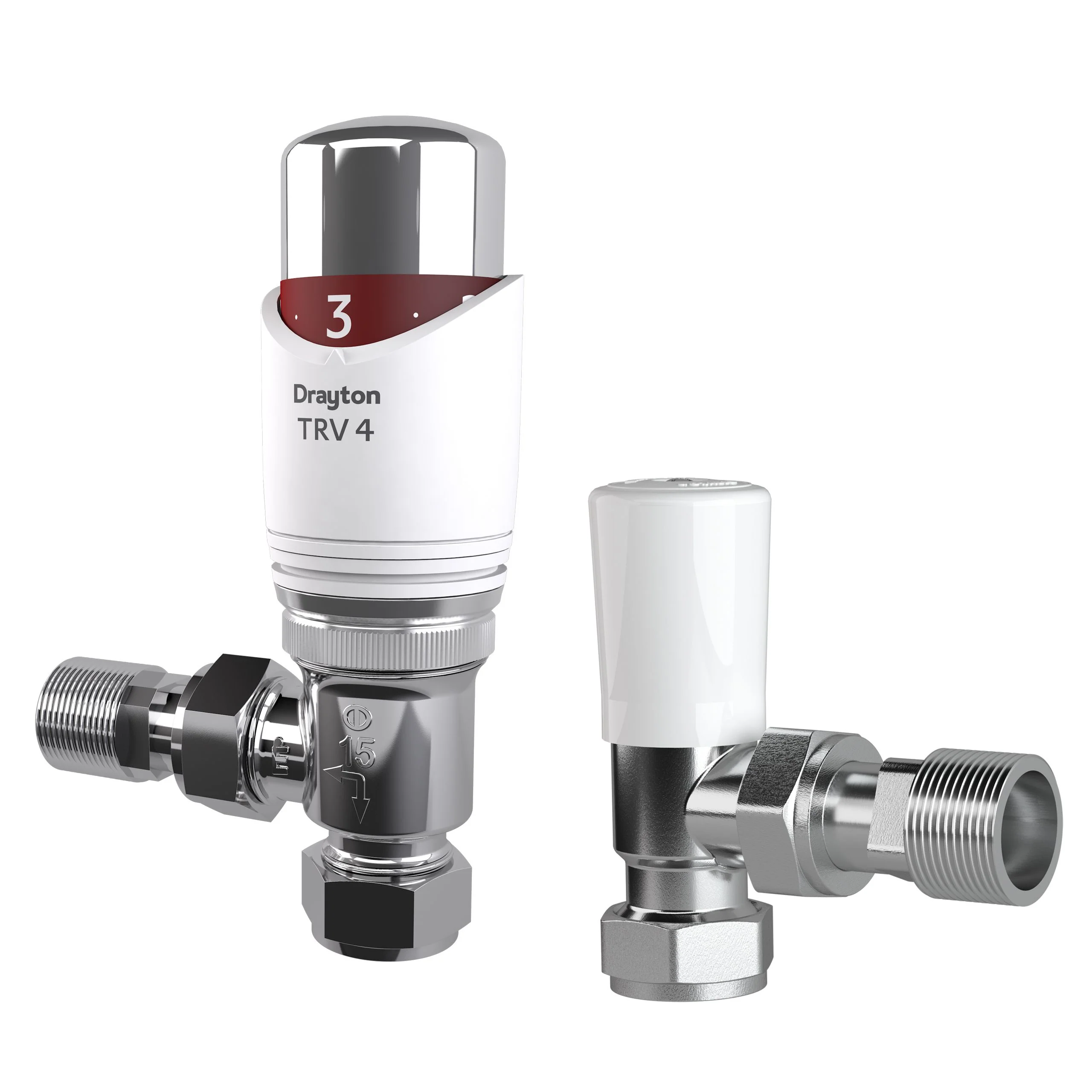

Product image 2

Drayton TRV4 Classic 15mm White Chrome Angled TRV Lockshield Valve Pack 07 05 180

Drayton TRV4 Classic 15mm White Chrome Angled TRV Lockshield Valve Pack 07 05 180

The Drayton TRV4 Classic 15mm Angled TRV & Lockshield Valve Pack (MPN 07 05 180) is the go-to complete valve pair for standard 15mm domestic radiator installations — supplying both a TELL Class I-rated TRV4 angled thermostatic radiator valve with integral head and a matching chrome angled lockshield valve in a single box. Both valves share the TRV4 Classic white and chrome finish, ensuring a co-ordinated appearance. The TRV body includes reverse flow capability, double gland seal, and a pre-setting balancing facility.

Class I
TELL Efficiency
Complete Pack
TRV + Lockshield
15mm
Angled Pair
Reverse Flow
Body Feature
EN215
Certified
System Commissioning
Flush the system to BS7593 and treat with inhibitor before and after installation. Fit a by-pass valve where differential pressure across TRVs may exceed 0.2 bar.
What's In the Pack
One TRV4 Classic 15mm angled TRV body with integral white/chrome sensing head, plus one matching 15mm angled chrome lockshield valve — everything needed to connect both ends of a single radiator.
Key Features
📦
Complete Radiator Pack
One pack covers both radiator connections — TRV at the inlet, lockshield at the outlet. No separate sourcing of matching lockshields; both valves share the TRV4 Classic chrome finish.
⚖
Dual Balancing Options
The TRV body's flow-rate adjustment insert provides primary balancing; the lockshield provides fine trim. Use one or both approaches to suit your commissioning workflow.
🔁
Reverse Flow Angled Body
The 15mm body accepts flow or return installation and vertical or horizontal head orientation — adaptable to practically all standard domestic radiator positions.
💧
Double Gland Seal
The double seal prevents water loss and allows the sensing head to be removed without draining down — minimising disruption when carrying out head replacements or adjustments.
Technical Specifications
MPN 07 05 180
Pack Contents 1x 15mm angled TRV4 Classic with integral head + 1x 15mm angled chrome lockshield
Finish Classic White / Chrome (TRV head + lockshield)
Connection 15mm compression (BS EN 1254-2); ½" BSP radiator thread (BS EN 10226)
Body Material Chrome-plated brass
Setting Range Approx. 10°C – 30°C (1–5 + MAX)
Frost Protection Below 8°C (marked *)
Max Flow Temperature 110°C
Max Sensor Temperature 50°C
Max Test Pressure 20 bar
Max Static Pressure (compression) 10 bar at 65°C; 6 bar at 110°C
Recommended Max Differential Pressure 0.2 bar (quiet); 0.6 bar absolute max
Sensor Sensitivity 0.22 mm/°C
Hysteresis 0.4 K
Energy Efficiency Rating TELL Class I
Standard BS EN 215 / Keymark (valid to 31.03.2029)
Manufacturer Drayton by Schneider Electric
Frequently Asked Questions
What is included in the 07 05 180 pack?
The pack contains: (1) TRV4 Classic 15mm angled thermostatic radiator valve with integral white and chrome sensing head; (1) 15mm angled chrome lockshield valve. 15mm compression fittings are included with both valve bodies.
Is the lockshield an exact colour match to the TRV?
Yes. The lockshield supplied in this pack has the same chrome finish as the TRV4 Classic body, giving a consistent appearance at both ends of the radiator.
How does the lockshield help with balancing?
The lockshield restricts flow at the outlet end of the radiator, allowing fine-tuning of the flow rate to each radiator relative to others on the circuit. This ensures all radiators receive the correct flow, preventing some rooms overheating while others remain cold.
Is this pack suitable for all domestic heating systems?
Yes — the TRV4 is compatible with virtually all two-pipe wet central heating systems including condensing boiler systems, heat pump systems, and combination boiler installations. For UFH or single-pipe systems, different valve types are required.
Which pack should I choose — white/chrome (07 05 180), anthracite (07 05 210), or chrome (07 05 174)?
07 05 180 (Classic white/chrome) suits standard white panel radiators. 07 05 210 (Anthracite) suits dark or anthracite designer radiators. 07 05 174 (Full chrome) suits chrome-finish, bathroom, or period-style radiators.
