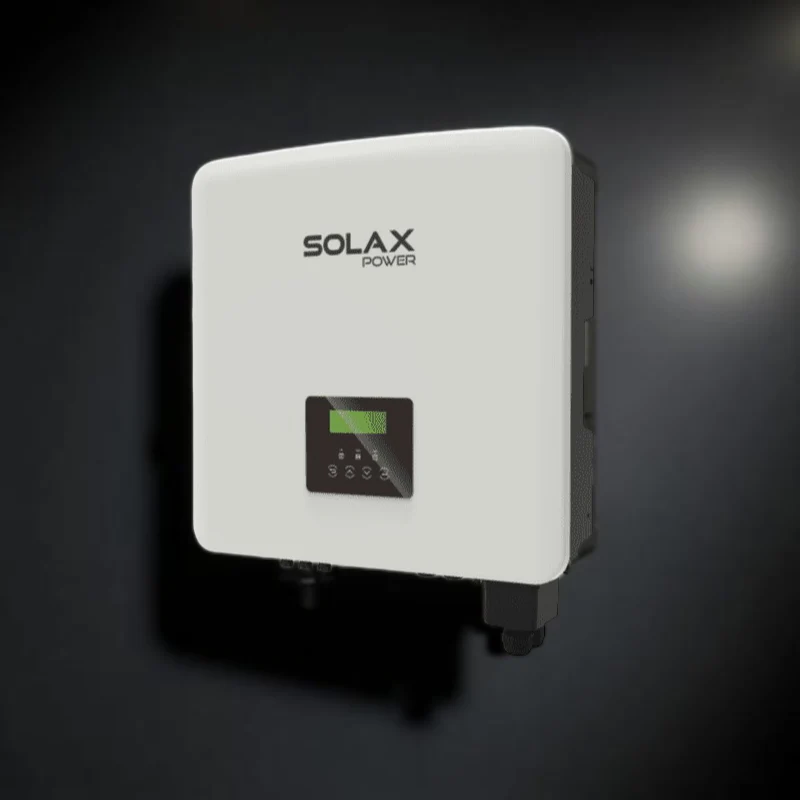

SolaX X3 Hybrid G4 (Three Phase) Inverter Range
SolaX X3 Hybrid G4 (Three Phase) Inverter Range
The SolaX X3 Hybrid G4 series is a state-of-the-art three-phase hybrid inverter range, designed for both residential and commercial solar-plus-storage projects. These inverters combine advanced solar PV conversion with high-voltage battery storage, delivering reliable backup power, intelligent energy management, and seamless integration with smart loads and EV charging.
Key Features
- Available sizes: 5kW, 6kW, 8kW, 10kW, 12kW, 15kW
- Hybrid functionality: solar PV inverter and battery storage controller in one
- In-built EPS (Emergency Power Supply) changeover switch for backup
- Supports up to 200% PV oversizing and up to 110% AC output
- Three-phase unbalanced output: up to 5kW per phase
- On-grid and off-grid operation, with parallel function up to 150kW
- Max. 28A input per MPPT for high-power solar panels
- 30A charge/discharge capability for rapid battery cycling
- Works at full capacity down to -35°C
- UPS-level switchover time <10ms
- Type II SPD (Surge Protection Device) on both AC and DC sides
- IP65 protection for indoor or outdoor installation
- Includes WiFi dongle for remote monitoring and management
- Smart load management (supports heat pumps, EV chargers, etc.)
- VPP-ready (Virtual Power Plant) and ancillary service support
- Quick configuration via USB drive
Model Range & Specifications
- AC Output Power: 5.0kW, 6.0kW, 8.0kW, 10.0kW, 12.0kW, 15.0kW (model dependent)
- Max. PV Input Power: Up to 200% of inverter rating (e.g. 20kW PV for 10kW inverter)
- Max. PV Input Voltage: 1000V (model dependent)
- MPPT Voltage Range: Typically 180–950V (model dependent)
- Number of MPPTs: 2 (most models)
- Max. Input Current per MPPT: Up to 28A
- Battery Voltage Range: 180V – 650V (model dependent)
- Max. Charge/Discharge Current: 30A
- Max. Efficiency: Up to 98%
- Charge/Discharge Efficiency: Up to 97.5%
- Operating Temperature Range: -35°C to +60°C
- Warranty: 10–12 years (model/distributor dependent)
Applications
- Residential and commercial solar-plus-storage systems
- Backup power for critical loads
- Smart home and building energy management
- Flexible grid services and VPP participation
