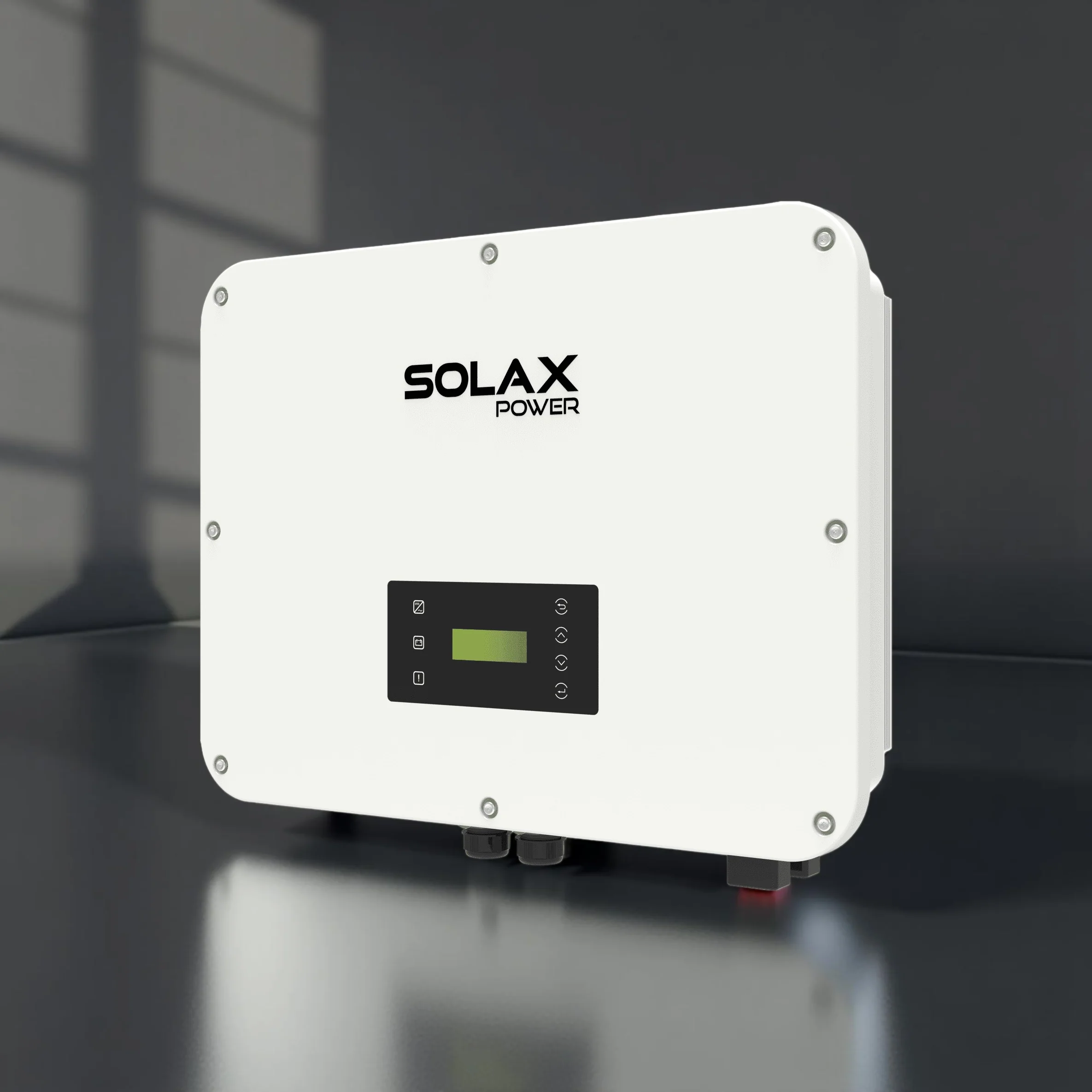

SolaX X3 Ultra 30kW Three Phase Hybrid Inverter
SolaX X3 Ultra 30kW Three Phase Hybrid Inverter
The SolaX X3 Ultra 30kW Hybrid Inverter is a top-tier three-phase hybrid inverter designed for large commercial, industrial, and high-demand residential solar-plus-storage installations. With advanced AI-driven energy management, robust backup capability, and support for both on-grid and off-grid operation, this inverter delivers maximum flexibility and efficiency for modern energy systems.
Key Features
- 30kW hybrid inverter with maximum output power up to 30kW
- Supports up to 200% PV oversizing (max. DC input power: 60,000W)
- 3 independent MPPTs, 6 PV strings (each MPPT supports up to 36A)
- Wide MPPT voltage range: 160–950V (start-up voltage: 200V)
- Max. DC input voltage: 1000V
- 100% unbalanced output support across three phases
- Max. battery voltage: 800V (battery voltage range: 180–800V)
- Max. battery charge/discharge current: 60A (2 × 30A)
- EPS backup output: 30kVA (continuous), 200% overload for 10s
- UPS-level switchover time: <10ms
- On-grid, off-grid, and microgrid operation; parallel up to 10 units
- AI-driven energy management and smart load control (EV charger, heat pump, etc.)
- Fanless, smart cooling with IP66-rated enclosure for indoor/outdoor use
- Type II SPD on both AC & DC sides, optional AFCI protection
- Built-in WiFi and advanced communication (Modbus RS485, digital I/O)
- High efficiency: up to 98% (max.), 97.7% (European)
- Compatible with SolaX Triple Power high-voltage battery systems
- G100/G99 grid approval, VDE4105, EN50549, CEI 0-21, and more
- Warranty: 5 years standard
Technical Specifications
- Max. Output Power: 30,000W
- Max. DC Input Power: 60,000W
- Max. DC Input Voltage: 1000V
- MPPT Voltage Range: 160–950V
- Start-up Voltage: 200V
- Max. DC Current (per MPPT): 36A
- Max. Short Circuit Current (per MPPT): 45A
- Phases: 3 (Three-phase)
- Nominal AC Voltage: 3P4W, 400/230V
- Nominal AC Current: 43.5A
- Max. AC Current: 43.5A
- Displacement Power Factor: 1 (adjustable 0.8 leading/lagging)
- Total Harmonic Distortion: <3%
- Battery Type: Lithium-ion
- Battery Voltage Range: 180–800V
- Max. Battery Charge/Discharge Current: 60A (2 × 30A)
- EPS Rated Power: 30,000VA
- EPS Peak Power: 60,000VA (10s)
- EPS Rated Voltage/Frequency: 400/230V, 50/60Hz
- EPS Rated Current: 43.5A
- Switchover Time: <10ms
- Internal Consumption (night): <5W
- Protection: Anti-islanding, DC reverse polarity, insulation/residual current monitoring, AC overcurrent/overvoltage, overheat, battery reverse charging, surge protection (Type II AC/DC), AFCI (optional)
- IP Rating: IP66
- Operating Temperature Range: -35°C to +60°C (derating above +45°C)
- Relative Humidity: 0–100%
- Altitude: up to 3000m
- Storage Temperature: -40°C to +70°C
- Dimensions: 696 × 526 × 240 mm
- Weight: 47 kg
- Cooling: Smart cooling, fanless
- Topology: Transformerless
- Communication: Modbus (RS485), Meter (RS485), DI × 5, DO × 2, WiFi
Applications
- Commercial and industrial solar-plus-storage systems
- Large residential projects with high energy demand
- Microgrid and off-grid installations
- Smart load and VPP/grid services participation
